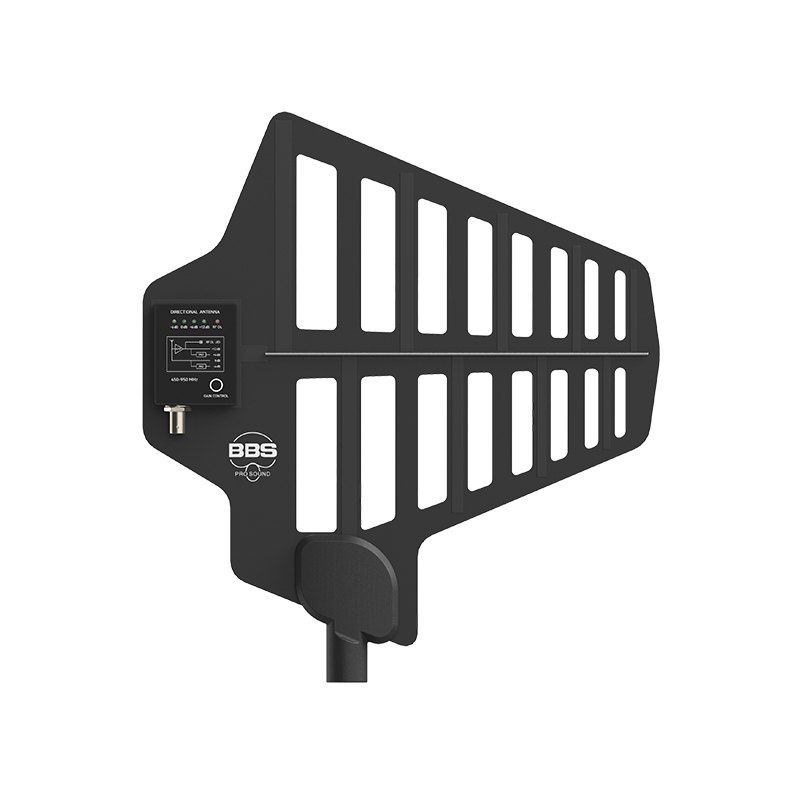

UA70V
QR code
share
Antenna
Features：
*Professional directional receiving antenna for UHF band use
*Ultra-wideband (450MHz-950 MHz), compliant with wireless microphone frequency regulations in various countries.
*Built-in antenna amplifier provides extended transmission range and stable signal transmission and reception.
*High gain directional characteristics offer excellent performance in specific directional environments.
*Adjustable output gain to prevent excessive gain from causing internal distortion in the receiver.
Features：
*Professional directional receiving antenna for UHF band use
*Ultra-wideband (450MHz-950 MHz), compliant with wireless microphone frequency regulations in various countries.
*Built-in antenna amplifier provides extended transmission range and stable signal transmission and reception.
*High gain directional characteristics offer excellent performance in specific directional environments.
*Adjustable output gain to prevent excessive gain from causing internal distortion in the receiver.
Detail
Specifications:
Frequency Range (MHz): 450~950
Maximum Gain (dBi): 8.0
Voltage Standing Wave Ratio (VSWR): ≤2.0
Polarization Method: Linear Polarization
Input Impedance (Ω): 50
Connector Type: BNC Connector
Dimensions (mm): 305X290X35.3
Net Weight (g): 282±5
Gross Weight (kg): 1.2
Operating Temperature (℃): -30~+60
Beamwidth: 90° Beamwidth
Low Noise Amplifier (LNA) Characteristics:
Operating Frequency Band (MHz): 450~950
LNA Gain (dB): -6~12 (4 adjustable levels)
Noise Figure: ≤2.0
Output VSWR: ≤2.0
Supply Voltage (V): DC 8~12
Amplifier OIP3: >38dBm
