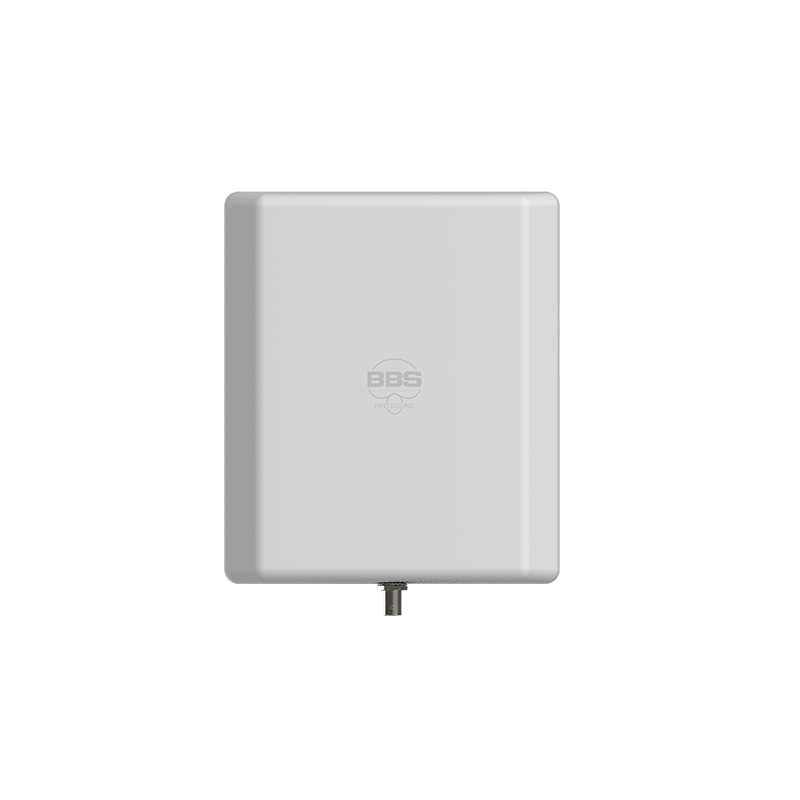

UA100W
QR code
share
Antenna for Wall
Features:
*Professional directional receiving antenna for UHF band use
*Ultra-wideband (450MHz-950 MHz), compliant with wireless microphone frequency regulations in various countries.
*Built-in antenna amplifier provides extended transmission range and stable signal transmission and reception.
*High gain directional characteristics offer excellent performance in specific directional environments.
Features:
*Professional directional receiving antenna for UHF band use
*Ultra-wideband (450MHz-950 MHz), compliant with wireless microphone frequency regulations in various countries.
*Built-in antenna amplifier provides extended transmission range and stable signal transmission and reception.
*High gain directional characteristics offer excellent performance in specific directional environments.
Detail
Specifications:
Frequency Range (MHz): 450~950
Maximum Gain (dBi): 8.0
Voltage Standing Wave Ratio (VSWR): ≤2.0
Polarization Method: Linear Polarization
Input Impedance (Ω): 50
Connector Type: BNC Female
Dimensions (mm): 207X107X44.5
Net Weight (g): 440±5
Gross Weight (kg): 1280±10
Operating Temperature (℃): -30~+60
Front-to-Back Ratio: ≥25dB
Beamwidth: 180° Beamwidth
Low Noise Amplifier (LNA) Characteristics:
Operating Frequency Band (MHz): 450~950
LNA Gain (dB): 19.0
Noise Figure: ≤2.0
Output VSWR: ≤2.0
Supply Voltage (V): DC 8~12
