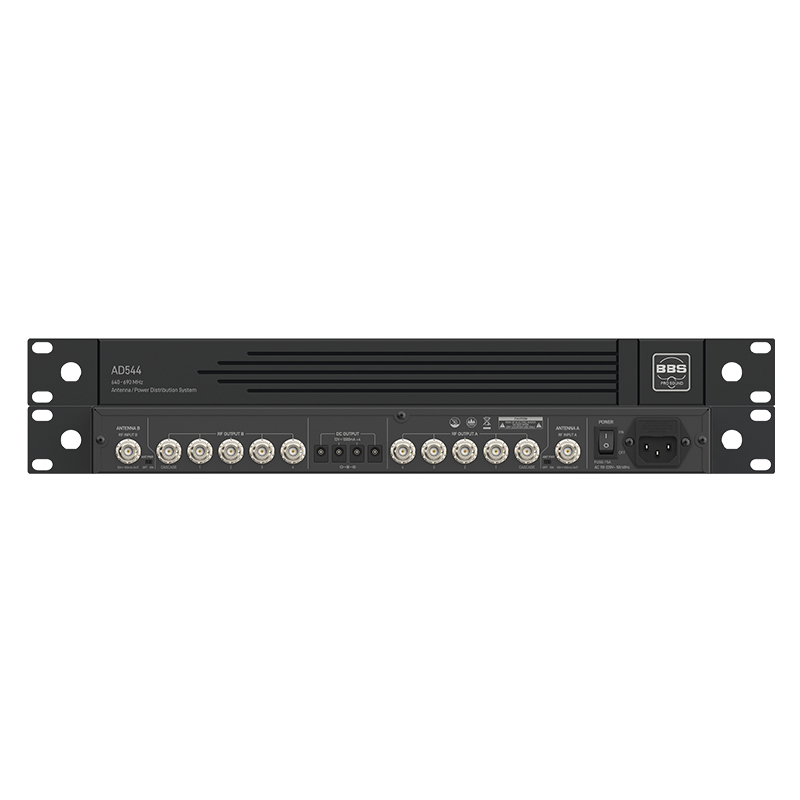

AD544
QR code
share
Antenna Distributor:
Features:
*1U standard rack Design with metal house.
*Customized frequency band for wireless microphones.
*4 independent isolated DC power outputs (DC 12V/1A), up to 4 wireless receivers from various brands simultaneously.
*Low noise, low distortionwhich ensures clear multi-channel reception and eliminates mixing interference.
*Input BNC connector with power output for signal booster: Direct connection to an antenna booster simplifies installation and effectively increases reception range.
*Cascade function: Allows multiple units to be connected in series, providing power and antenna functionality for more devices.
Features:
*1U standard rack Design with metal house.
*Customized frequency band for wireless microphones.
*4 independent isolated DC power outputs (DC 12V/1A), up to 4 wireless receivers from various brands simultaneously.
*Low noise, low distortionwhich ensures clear multi-channel reception and eliminates mixing interference.
*Input BNC connector with power output for signal booster: Direct connection to an antenna booster simplifies installation and effectively increases reception range.
*Cascade function: Allows multiple units to be connected in series, providing power and antenna functionality for more devices.
Detail
Specifications:
Rack Mount: EIA standard 1U
Frequency Range: 640-690MHz
RF Output Gain: 1dBm ± 1dB
Noise Figure: ≤ 2.0
OIP3: +14dBm
Impedance: 50Ω
Input Power Supply: DC 12V/150mA
Output Power Supply: Each channel outputs DC 12V/1000mA (four channels)
Main Unit Power Supply: AC 110-240V 50/60Hz
Connector: BNC
Dimensions（mm): 480X52X205
Weight: 2.5KG
