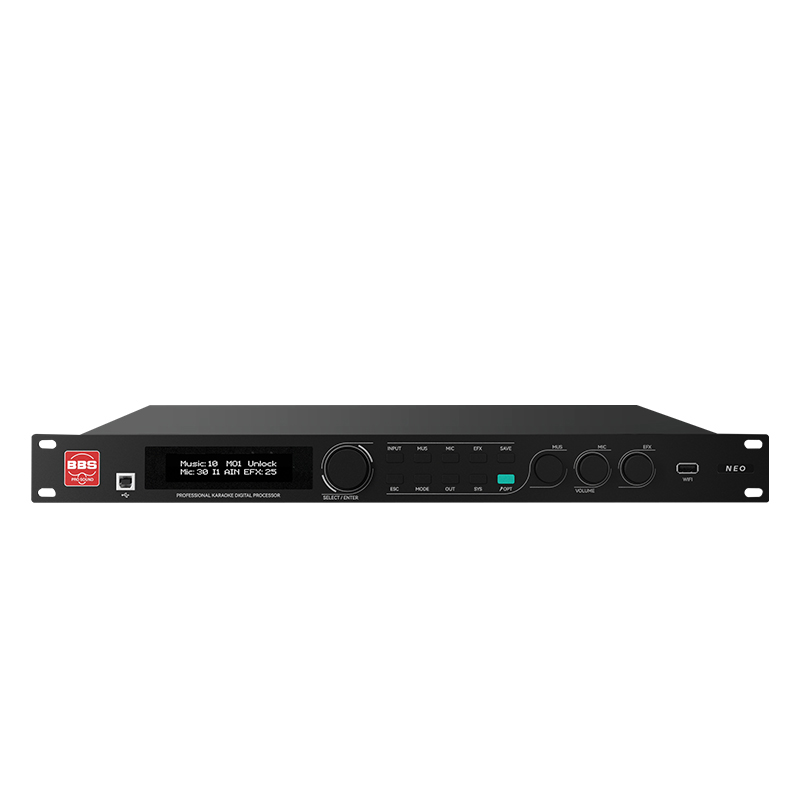

NEO
*Professional-grade digital audio effect processor.
*Microphone input with four levels of feedback suppression.
*Pitch control function to provide a more diverse karaoke experience.
*Capable of storing up to 16 presets.
*Reverb and echo effects can be controlled independently.
*Two pairs of RCA interfaces and one optical and coaxial interface for music input.
*Microphone input equipped with a 20-band parametric equalizer. Music input equipped with a 15-band parametric equalizer.
*Subwoofer output terminal for connecting active subwoofers.
*AUX output for connecting professional power amplifiers or other audio equipment.
*Computer-side control software to assist professional users in fine-tuning the system.
Specifications:
Audio Input
• Mic Input Type: 4 x 1/4" Unbalanced
• Mic Input Impedance: 8kΩ
• Level Control: –∞ to +0.8dBu
• Line Input Type: RCA Unbalanced (L/R Channels)
• Line Input Impedance: 10kΩ
• Digital Input Interface: Optical/Coaxial
Audio Output
• XLR Output Type: Unbalanced
• Level: 0dBu (Nominal), +14.2dBu (Max)
• Impedance: 50Ω
• RCA Output Type: Unbalanced (L/R Channels)
• Level:
+17.6dBu (Max) @ Mic Input
+13.4dBu (Max) @ Line Input
• Impedance: 300Ω
• Signal-to-Noise Ratio: >100dB @ A-weight
• Noise Floor: <80μV @ A-weight, Gain to Max
Audio Performance
• Frequency Response: 20Hz–20kHz (±1.0dB)
• THD+N: <0.06% (20Hz–20kHz)
• Dynamic Range: >100dB
• A/D Conversion: 24-bit, 48kHz
• DSP Processor: High-performance 32-bit/40-bit Floating Point
IR Receiver
• Carrier Frequency: 38kHz
• Protocol: NEC
• Effective Distance: Varies by device
• Effective Angle: Varies by device
General Specifications
• Computer Connection: USB 2.0
• Power Requirement: AC 220V, 50Hz
• Dimensions (W×D×H): 485 × 205 × 47mm
• Net Weight: 3.2kg
